250% Pre Stretch Wrapping Machine , Intelligent Airport Luggage Wrapping Machine

  • 1
  • 2
  • 3

Gear Motor : SAMAH

Model Number : X0bg

Name : Airport Luggage Wrapping Machine

Travel Switch : Omron

MOQ : 1

Delivery Time : 45 working days

Column Height : 1280 mm

Film Wrapping Force : Adjustable

Inverter : X-line

Payment Terms : T/T

Film Roll Diameter : 250 mm

Total Power : 1.2 kW

PLC : X-line

Price : US$2,800-3,600

Pre-Stretch Rate : 250%

Pneumatic Components : AirTAC

Supply Ability : 150 sets

Turntable Speed : 0–20 rpm

Film Feed Speed : 5 m/min

Certification : CE UL

Turntable Diameter : 500 mm

Machine Weight : 400 kg

Voltage : 220V / 50Hz

Pressure Plate Diameter : 250 mm

Brand Name : TOVOT

Model : X0bg

Relay : Omron

Packaging Details : Wrapping film

Carriage Up/Down Speed : 6 m/min

Place of Origin : CHINA

Maximum Load Capacity : 50 kg

Machine Dimensions : 1400 × 600 × 1704 mm

Contact Now

250% Pre-Stretch Intelligent Luggage Wrapping Machine 50kg Capacity Stretch Wrapper For Airports Hotels Transportation Hubs

Product Overview

The 250% Pre-Stretch Intelligent Luggage Wrapping Machine is designed to provide fast, secure, and economical baggage protection for high-traffic transportation environments. Combining X-line IoT intelligent control, automatic photoelectric height sensing, and a powered pre-stretch film carriage, this machine delivers professional wrapping quality while minimizing film consumption and operating costs.

Ideal for airports, railway stations, hotels, logistics terminals, and travel service providers, the machine wraps luggage quickly and consistently, protecting suitcases from scratches, moisture, dust, tampering, and accidental opening during transit. The adjustable wrapping tension accommodates various luggage sizes and materials, while its compact footprint allows easy installation in locations where space is limited.

Manufactured with premium industrial components including AirTAC pneumatic systems, Omron electrical components, and SAMAH drive technology, the machine ensures long service life, reliable performance, and low maintenance. It is the perfect solution for businesses looking to increase service efficiency, improve customer satisfaction, and create additional revenue through professional luggage wrapping services.

250% Pre Stretch Wrapping Machine , Intelligent Airport Luggage Wrapping Machine

Why Choose an Intelligent Luggage Wrapping Machine?

Modern baggage handling systems involve multiple loading and unloading processes before luggage reaches its final destination. During transportation, suitcases are often exposed to impacts, weather changes, and rough handling, increasing the risk of damage or unauthorized access.

Traditional manual wrapping methods are slow, inconsistent, and consume excessive stretch film. They also require experienced operators to achieve acceptable packaging quality.

An intelligent luggage wrapping machine automates the entire wrapping process, ensuring every piece of luggage receives consistent protection while reducing labor costs and improving operational efficiency. For airports and travel service providers, offering luggage wrapping services also creates an additional source of customer value and business income.

Solution

The X0bg Intelligent Luggage Wrapping Machine has been engineered to simplify baggage protection while reducing packaging costs.

The integrated photoelectric sensor automatically measures the luggage height and initiates an optimized wrapping cycle without manual adjustment. Its 250% powered pre-stretch carriage significantly reduces film consumption while maintaining excellent wrapping strength.

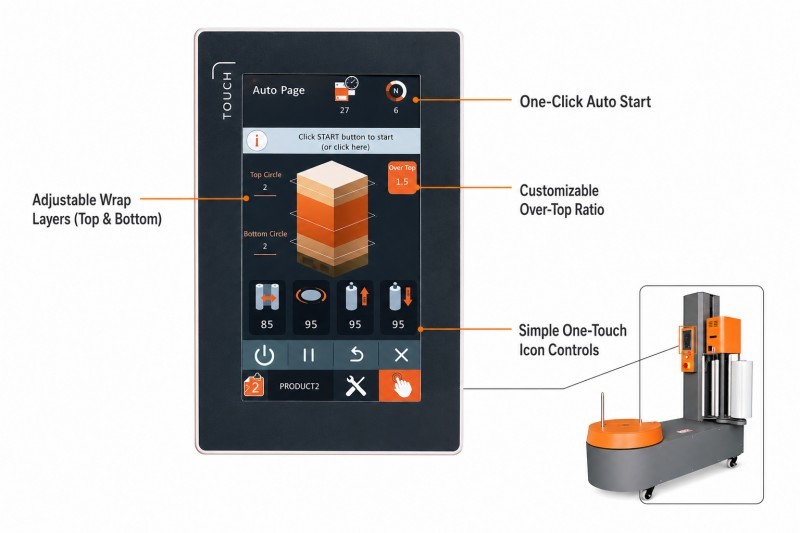

The X-line PLC control system enables simple parameter adjustment, ensuring repeatable packaging quality for different baggage sizes. Combined with adjustable film tension and durable industrial components, the machine provides reliable performance throughout continuous daily operation.

This intelligent solution helps businesses improve efficiency, lower operating expenses, and deliver a more professional baggage protection service.

Specifications
Specification Value
Model X0bg
Turntable Diameter 500 mm
Maximum Load Capacity 50 kg
Column Height 1280 mm
Pre-Stretch Ratio 250%
Film Roll Diameter 250 mm
Turntable Rotation Speed 0–20 rpm
Wrapping Force Adjustable
Film Carriage Speed 5 m/min
250% Pre Stretch Wrapping Machine , Intelligent Airport Luggage Wrapping Machine
Applications

This intelligent baggage wrapping machine is widely used in commercial environments where safe and efficient luggage protection is required.

Typical applications include:

  • International airports
  • Domestic airport terminals
  • Railway stations
  • High-speed rail stations
  • Cruise terminals
  • Hotels and resorts
  • Tourist attractions
  • Travel agencies
  • Logistics and courier companies
  • Passenger transportation centers
  • Duty-free shopping areas
  • Exhibition and convention venues

The machine is suitable for wrapping:

  • Hard-shell suitcases
  • Soft luggage
  • Duffel bags
  • Backpacks
  • Gift boxes
  • Cartons
  • Sports equipment bags
  • Musical instrument cases
How It Works

Step 1 – Position the Luggage

The operator places the baggage on the center of the rotating turntable. The photoelectric sensor automatically detects the luggage dimensions and height.

Step 2 – Stretch the Film

The powered pre-stretch carriage extends the stretch film by up to 250%, improving film utilization while maintaining optimal wrapping tension.

Step 3 – Automatic Wrapping

The turntable rotates while the film carriage travels vertically, applying multiple overlapping layers of stretch film to create complete luggage protection.

Step 4 – Finished Packaging

After the programmed wrapping cycle is completed, the luggage can be removed immediately and is ready for transportation, airline check-in, or long-distance shipping.

How To Choose the Right Luggage Wrapping Machine

Selecting the appropriate luggage wrapping machine depends on your business model, daily passenger volume, and operational requirements.

If your facility processes a moderate number of passengers each day, a compact intelligent machine like the X0bg provides an excellent balance between performance and investment cost. For airports with higher throughput, multiple units can be installed to increase service capacity during peak hours.

Pay close attention to the pre-stretch ratio. A higher pre-stretch percentage directly reduces film usage, lowering long-term packaging expenses. Machines equipped with automatic height detection also improve consistency while minimizing operator intervention.

Reliable electrical and pneumatic components are equally important. High-quality brands such as Omron and AirTAC contribute to longer equipment life, fewer breakdowns, and reduced maintenance costs.

Finally, consider future customization requirements. Machines supporting OEM branding, multilingual interfaces, customized voltages, and optional accessories offer greater flexibility for expanding your luggage wrapping business.

FAQ

Q1. What is the maximum luggage weight supported?

The X0bg model is designed for baggage weighing up to 50 kg, making it suitable for most airline and railway luggage requirements.

Q2. How much packaging film can be saved?

Thanks to the 250% powered pre-stretch system, film consumption can be reduced substantially compared with conventional wrapping machines, helping lower overall operating costs.

Q3. Is the machine easy to operate?

Yes. The intelligent PLC control system features a simple operating interface, allowing new operators to become familiar with the machine after minimal training.

Q4. Can the machine wrap different luggage sizes?

Absolutely. The photoelectric sensor automatically detects luggage height, while adjustable film tension allows secure wrapping for various suitcase dimensions and materials.

Q5. Do you provide customization services?

Yes. We offer OEM and ODM manufacturing, customized machine colors, logo branding, multilingual control interfaces, voltage customization, and optional functional upgrades to meet different market requirements.

Why Partner With Us?

As an experienced manufacturer of intelligent packaging equipment, we provide more than just machines—we deliver complete luggage wrapping solutions tailored to international markets. Every machine is built with carefully selected industrial components, tested before shipment, and supported by professional technical service. Whether you are establishing a new airport luggage wrapping station or upgrading an existing baggage protection service, our intelligent wrapping machines help improve efficiency, reduce consumable costs, and provide travelers with reliable protection for every journey.
